2026 How to Choose a Latching Relay for Your Application?

Choosing a Latching Relay begins with understanding the application, not comparing catalog prices. A relay may control a small signal, a motor starter, lighting panel, battery system, or industrial safety circuit. Each load creates different electrical and mechanical demands. The correct choice must match coil voltage, contact rating, switching frequency, insulation strength, and environmental conditions.

Dr. Hiroshi Sato, a relay design specialist, explains the principle clearly: “A latching relay saves energy only when the circuit respects its memory.” That memory matters. A Latching Relay changes state with a short pulse and remains there without continuous coil power. This can reduce heat, wiring losses, and standby consumption. It can also create confusion when a controller restarts and does not know the relay’s physical state.

Look closely at the load. A 24-volt DC coil may suit an automation cabinet, but contact material must still handle inrush current. A resistive lamp and an inductive solenoid are not equal. Neither is a clean laboratory load and a dusty outdoor enclosure. Temperature, vibration, humidity, and switching noise deserve attention. Small details matter.

I have seen designs fail because engineers selected only by nominal current. That shortcut feels efficient. It is not always wise. Contact derating, suppression circuits, mounting direction, and pulse duration can change field performance. Datasheets also deserve careful reading. Some specifications appear complete, yet omit real-world duty limitations.

This guide examines practical selection steps for 2026. It also questions common assumptions, because the “strongest” relay is rarely the most suitable one.

2026 How to Choose a Latching Relay for Your Application?
Table of Contents [Hide]
1 Define the 2026 Application: Latching Relays Use 0 W Holding Power
2 Choose One-Coil or Two-Coil Designs for 10–100 ms Control Pulses
3 Match Contact Ratings from 5–30 A to the Actual AC or DC Load
4 Compare Typical Life: 10⁵ Electrical Versus 10⁷ Mechanical Cycles
5 Verify IEC 61810-1, UL 508, Insulation, and Safety Requirements

Define the 2026 Application: Latching Relays Use 0 W Holding Power

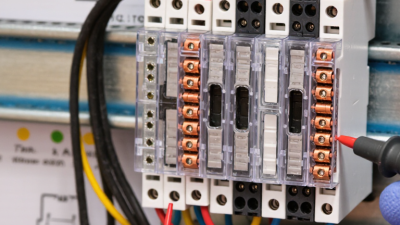

How to Choose a Latching Relay for Your Application?

Define the 2026 Application: Latching Relays Use 0 W Holding Power

A latching relay needs coil power only during state changes. It then holds its contacts mechanically, with 0 W holding power at the coil. This matters in battery meters, smart panels, and backup controls. Every saved watt reduces heat and extends operating time. The IEA’s Electricity 2024 report estimates data centers used about 460 TWh globally in 2022. Demand could exceed 1,000 TWh by 2026. Small control savings deserve closer attention.

Choose the relay by load type, switching frequency, pulse width, and required contact endurance. Check resistive, inductive, and motor loads separately. An inductive load can create damaging voltage spikes. Add suitable suppression and verify the relay’s contact rating under real conditions. IEC 61810-1 provides useful requirements for electromechanical relay performance and testing. Do not select only by nominal voltage.

I would not treat “0 W” as a magic number. The relay coil stops consuming power, but its driver circuit may still draw current. Long wires, weak pulses, or contact bounce can also create field problems. Test cold starts, brownouts, vibration, and manual recovery. A resettable design may be safer. Measure the complete circuit, not only the relay. That is where many energy estimates become optimistic.

Choose One-Coil or Two-Coil Designs for 10–100 ms Control Pulses

2026 How to Choose a Latching Relay for Your Application?

Choose One-Coil or Two-Coil Designs for 10–100 ms Control Pulses

A latching relay suits equipment that must retain its state without continuous coil power. MarketsandMarkets’ 2024 electromechanical relay report estimates steady market growth through 2029. That trend reflects demand for lower standby consumption in industrial controls, energy systems, and battery-powered devices. For a 10–100 ms pulse, start with the relay’s specified minimum set and reset times. Do not judge performance from nominal voltage alone. Coil resistance changes with temperature.

One-Coil and Two-Coil Designs

A one-coil design uses opposite-polarity pulses for set and reset commands. It saves wiring and often reduces package size. However, the driver must reverse polarity reliably. A two-coil design separates set and reset functions. It simplifies control logic, especially when several controllers share the same relay. It also prevents an accidental reset pulse from being confused with a set command. More terminals are required.

Test it physically.

Use a controlled 10 ms pulse first, then increase toward 100 ms. Measure coil current at the cold and hot limits. IEC 61810-1 emphasizes rated electrical endurance, contact behavior, and operating conditions, but application testing remains essential. A pulse that works on the bench may fail after vibration, contact bounce, or a weak supply. That rule is useful, but incomplete. Engineers sometimes select the smallest relay and regret the margin later. Check contact load, insulation, bounce time, and driver flyback behavior before approval.

Match Contact Ratings from 5–30 A to the Actual AC or DC Load

Choosing a latching relay starts with the actual load, not the catalog headline. A 5 A relay may handle a small resistive heater, yet struggle with a motor’s starting surge. Confirm whether the circuit uses AC or DC. Then check voltage, current, inrush, and switching frequency. For DC loads, arc suppression matters because current does not naturally cross zero. For AC loads, verify the rating at the actual voltage and power factor. A 30 A rating under one condition may drop with inductive loads.

Tips: Measure the real load with a calibrated meter during startup, not only during steady operation. Leave practical margin above the measured current. Review contact life, terminal temperature, insulation spacing, and pulse-coil requirements. Latching designs use short set or reset pulses, which can reduce standby energy. However, an unsuitable driver may create weak pulses or repeated switching. I have seen selections fail because engineers trusted nominal current alone. That mistake is easy to repeat. Test the relay inside the enclosure, where heat, wiring resistance, and vibration change behavior.

Compare 5, 10, 16, 20, and 30 A options against the measured AC or DC load. Check steady-state and expected abnormal conditions. Pumps, compressors, lamps, and solenoids often demand more during startup. If the load approaches the limit, select suitable derating rather than relying on hope. Do not assume a larger relay is always better. Coil power, enclosure space, contact life, and switching noise still matter. Document the test conditions, then repeat them after thermal cycling.

2026 How to Choose a Latching Relay for Your Application? – Match Contact Ratings from 5–30 A to the Actual AC or DC Load

Load Category Typical Operating Load Common Voltage Typical Inrush or Starting Current Suggested Contact Rating Recommended Contact Configuration Arc-Control Measures Key Selection Considerations
Resistive heater, heating element or electric radiator 5–30 A continuous 120–240 VAC Approximately 1.0–1.2 × rated current after start-up Select contacts rated at least 16–30 A AC, according to the measured load Normally open or changeover; single-pole or multi-pole as required Usually no suppression required; an RC snubber may reduce switching noise Allow for continuous thermal loading, enclosure temperature and conductor size. Do not size only from the relay coil rating.
AC induction motor, fan or pump 5–15 A running current 120–240 VAC Typically 3–7 × full-load current during starting Use a motor-rated contact specification; commonly 20–30 A for a 5–15 A running load Normally open; use two poles for isolation where required RC snubber or metal-oxide varistor across the AC load can reduce arcing Check locked-rotor, horsepower or motor-duty ratings. A general resistive 10 A rating is not equivalent to a 10 A motor rating.
DC solenoid, valve or electromagnetic actuator 5–10 A steady-state 12–48 VDC Often 1.2–2.5 × holding current; pull-in current may be higher Select a DC contact rating of 10–20 A at the actual voltage and load type Normally open; use a contact arrangement that prevents unintended energization Flyback diode for compatible DC coils, or a TVS diode when faster release is required DC arcs are harder to interrupt than AC arcs. Verify the relay’s DC load table rather than applying its AC rating.
DC motor, pump or linear actuator 5–20 A running current 12–48 VDC Commonly 3–8 × running current at start-up or stall Use a DC motor-duty rating, typically 20–30 A for a 5–15 A running load Normally open; two poles may be needed for polarity reversal or isolation TVS diode, DC-rated suppressor or appropriately rated freewheel circuit Check starting, stall and braking current. Contact spacing and DC interruption capability are critical.
LED driver or switched-mode power supply 5–15 A input current 120–240 VAC Typical capacitive inrush can reach 10–40 × steady-state current for a short duration Choose a 16–30 A relay with a specified electronic-ballast, LED or capacitive-load rating Normally open; use a two-pole configuration where complete isolation is needed RC snubber or MOV; an inrush limiter may be required for large power supplies Steady-state current alone can substantially underestimate contact stress. Confirm peak inrush duration and repetition rate.
Incandescent lamp or halogen lighting 5–20 A running current 120–240 VAC Cold-filament inrush may reach 8–15 × the hot operating current Use a lighting-rated contact specification, commonly 20–30 A for a 5–15 A lamp load Normally open; use a maintained contact state when the relay is unpowered MOV or RC snubber can limit contact arcing Calculate the cold-load inrush for grouped lamps. A relay rated for resistive load may require a lower lamp-current limit.
Capacitor bank or power-factor correction capacitor 5–30 A RMS operating current 120–480 VAC Can exceed 20 × rated current during energization Use a capacitor-duty contactor or relay with a verified capacitive-load rating; often 25–30 A or higher Normally open; multi-pole switching may be required by the system design Pre-charge resistor, inrush limiter or dedicated capacitor-switching circuit Do not use a standard resistive rating without checking peak inrush, switching frequency and capacitor discharge conditions.
Electronic control input or small signal load Below 5 A 5–48 VDC or 24–120 VAC Usually low, but capacitive inputs can produce brief charging current A 5–10 A contact rating is normally sufficient; verify minimum-load capability Changeover contacts may be useful for alarm, interlock or status circuits Use signal-level suppression where required; avoid excessive contact contamination Check minimum switching current and voltage, contact resistance and insulation requirements, not only the maximum ampere rating.
Mixed AC/DC field load 5–30 A, depending on the connected equipment 12–240 V AC or DC Determined by the most demanding connected load Select separate AC and DC contact ratings for every operating condition Use mechanically suitable contacts and adequate creepage and clearance Apply AC or DC suppression appropriate to each load branch Never assume one 30 A rating applies equally to AC and DC. Confirm voltage, current, load category and switching frequency together.

Engineering reference: contact ratings depend on voltage, load type, inrush current, switching frequency, ambient temperature and required electrical life. Always verify the relay manufacturer’s AC and DC load curves, contact material, insulation rating and applicable safety requirements before final selection.

Compare Typical Life: 10⁵ Electrical Versus 10⁷ Mechanical Cycles

2026 How to Choose a Latching Relay for Your Application?

Compare Typical Life: 10⁵ Electrical Versus 10⁷ Mechanical Cycles

A latching relay can retain its contact position without continuous coil power. Its mechanical life may reach 10⁷ cycles under controlled, unloaded conditions. Electrical life is usually much lower, often around 10⁵ cycles at the rated load. The difference comes from contact erosion, arcing, heat, and switching current. Numbers can mislead.

In practical testing, a motor load is harder than a resistive heater. Starting current can briefly exceed the motor’s normal running current several times. Inductive valves and solenoids may also create voltage spikes during release. These stresses can pit contact surfaces and increase resistance. I once treated the rated current as the whole story. That assumption failed.

Check the load waveform, inrush current, switching frequency, and ambient temperature before selecting the relay. Review both resistive and inductive electrical-life data. Confirm whether the published 10⁵-cycle rating uses your actual voltage and current. A relay switching a small signal may approach its mechanical life, while a power relay may wear electrically much sooner. Use suppression components when appropriate, but verify their effect on release speed. Prototype testing should include real wiring, connectors, and the intended enclosure. Record contact resistance during cycling. A clean test bench is useful, but it is not the field.

Verify IEC 61810-1, UL 508, Insulation, and Safety Requirements

Choosing a latching relay in 2026 requires more than checking contact current. IEC 61810-1 defines important relay performance requirements, including switching endurance, dielectric strength, and temperature behavior. Confirm the exact rating for resistive, inductive, and motor loads. A relay rated for 10 A resistive loads may perform poorly with a motor’s inrush current.

UL 508 matters when the relay operates inside industrial control equipment. Verify whether the complete assembly, not only the component, meets the required certification conditions. Review insulation coordination under IEC 60664-1. Check clearance, creepage, pollution degree, and overvoltage category. Also confirm coil-to-contact isolation and dielectric withstand voltage. Small gaps become serious risks near 480 V circuits. Keep them visible in the drawing.

Market research reports show continued demand for relays as industrial automation expands. One 2024 market analysis estimated the global relay market at more than 9 billion dollars. That growth does not remove engineering responsibility. Measure the coil pulse at the lowest supply voltage. Check whether the relay remains latched after vibration, heat, and repeated switching. Do not trust the catalog alone. A practical mistake is ignoring reset behavior after brownouts. Define the safe state, fuse the circuit, and document abnormal conditions. The final choice should match the application’s verified electrical, mechanical, and safety limits.
